MOQ : 500pcs
Price : 1.42usd/pcs
Payment Terms : T/T,D/P,D/A,L/C
Supply Ability : 5000pcs a wekk
Delivery Time : 25 days
Packaging Details : PE bag
Brand Name : kuncan
Model Number : KC9713
Certification : FCC
Place of Origin : China
INPUT/OUTPUT SPECIFICATIONS: | |
Input Voltage: | AC 100V-240V,50/60Hz |
Range Voltage: | AC 90V-264V,47/63Hz |
Output Power: | 12W |
Output Voltage: | 3V-12V |
Output Current: | 0.5A-3A |
Over Current Protection: | 120% Min |
Over Voltage Protection: | 150% Min |
Short Protection: | Auto Recovery |
Load Regulation: | ±5% |
GENERAL SPECIFICATIONS: | |
Operating Temperature: | 0 ~ 40°C |
Operating Relative Humidity: | 5 ~ 95%RH |
Storage Temperature: | -20 ~ 85 °C |
Withstanding Voltage: | AC 3000V/Min |
| (between Input & Output),10mA(Max.) |
Insulation Resistance: | DC500V 100MΩ(Min.) |
| (between Input & Output) |
Efficiency: | 70% Min |
size: | 52*41*25mm(L*W*H) |
SAFETY: | CE |

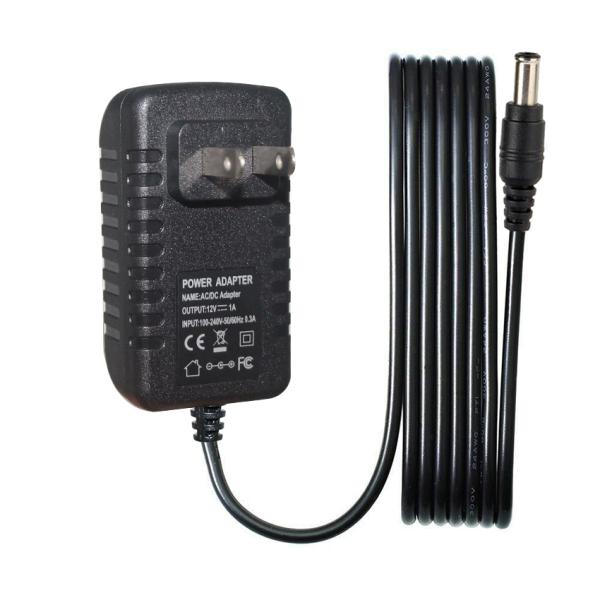

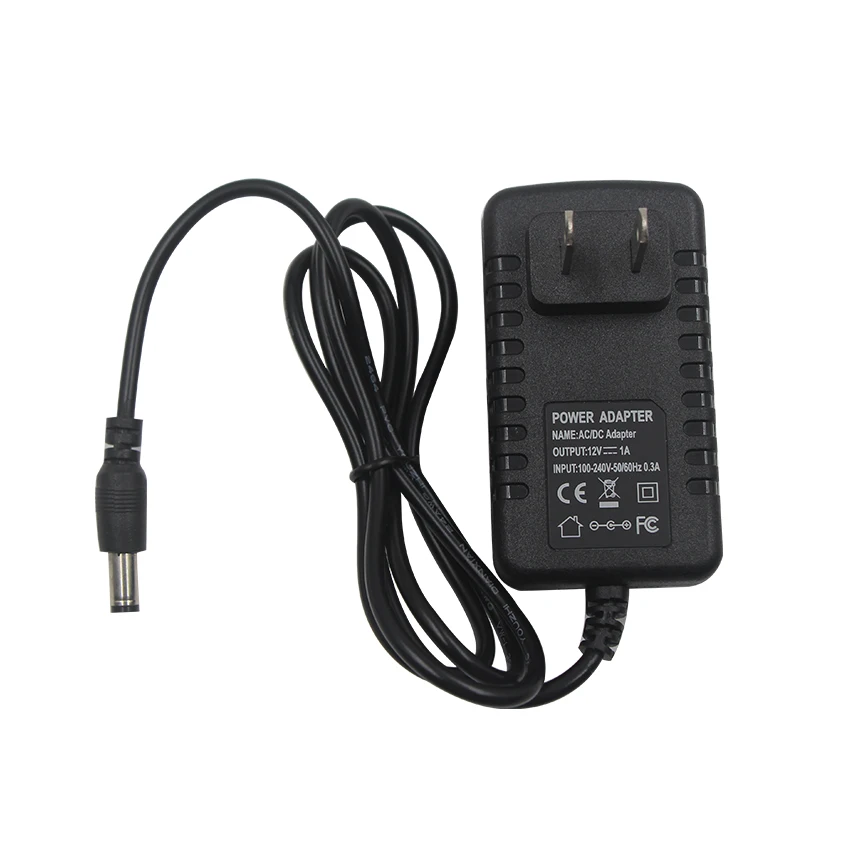

This 12V 1A power adapter with US plug delivers stable power for various electronic devices. Designed for steady performance, it safely powers your equipment with consistent voltage regulation.
This adapter provides an ideal replacement power solution for 12V devices requiring up to 1A current.
Suggested Keywords:
12V power adapter, 1A US plug adapter, DC power supply, 12W power adapter, low voltage adapter
![]() |
12V 1A US Plug Power Adapter 100-240V AC Input Images |
